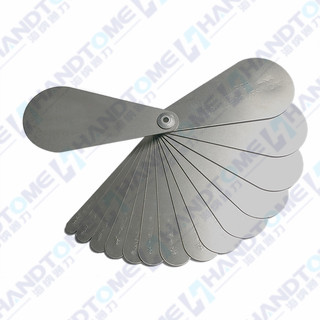

Sheave Groove Gauge

Overview

The wire rope groove gauges is a kind of inspection tool for worn grooves. The sheave groove gauges are manufactured to a diameter plus a tolerance. This size allows the sheave to have a slightly larger diameter than the wire rope it supports. When the gauge is placed in the sheave, the geometries should match without any space at the sides or bottom.

It is suitable for the drilling operation in the oil & gas industry, and it is manufactured according to the API RP9B-1999 “Recommended Practice on Application, Care, and Use of Wire” and SY/T 6666-2017 Recommended practice on application care, and use of wire rope for petroleum & natural gas industry service


Features

Materials: stainless steel

Units: Metric or British.


SGG series

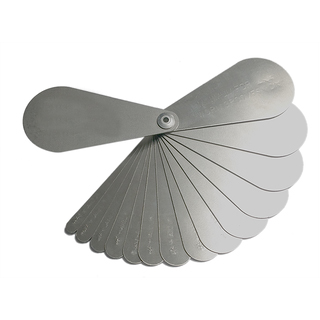

SGG series Sheave Groove GaugeOne set of these series of sheave groove gauges has 22pcs gauges each of which has a semi-circular shape at the end of each gauge, and its radius is the minimum worn groove radius.

Style: Standard sheave groove gauge

Model: SGG

Quantity: 22pcs/each set

Size range: 1/4”-2.1/2” (6.5mm-64.0mm)

Sheave gauge: Nominal+2.5%


* SGS Series

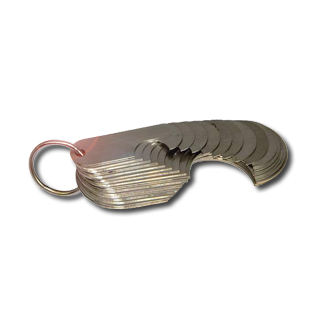

SGS series Sheave Groove GaugeEach of these series of sheave groove gauges is a three gauges set, each of which has a semi-circular shape at the end of each gauge, and its radius is the minimum worn groove radius, the minimum new groove radius and the maximum groove radius respectively. On the shank of each gauge, there is a wire rope gauge, which is used for inspecting the worn of the wire rope, its radius is normal wear conditions, and the value is a 6.25% reduction in the normal rope size.

Style: Three sheave groove gauges set, with wire rope gauge on shank

Model: SGS

Quantity: 15 types, 3pcs/each set

Size range: 3/4”-2.3/4” (13.0mm-45.0mm)

Sheave gauge: Nominal+2.5%, +6%, +10%

Wire rope gauge: Nominal-6.25%


* SGW series

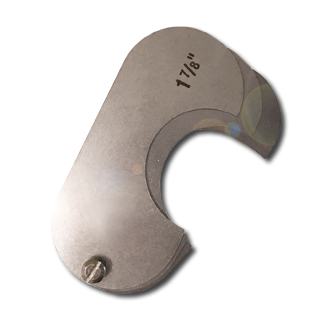

SGW series Sheave Groove GaugeOne set of these series of sheave groove gauges has 22pcs gauges, each of which has a semi-circular shape at the end of each gauge, and its radius is the minimum worn groove radius. On the shank of each gauge, there is a wire rope gauge, which is used for inspecting the worn of the wire rope, its radius is normal wear conditions, and the value is a 6.25% reduction in the normal rope size.

Style: sheave groove gauge on end with wire rope gauge on shank

Model: SGW

Quantity: 22pcs/each set

Size range: 1/4”-2.1/2” (6.5mm-64.0mm)

Sheave gauge: Nominal+2.5%

Wire rope gauge: Nominal -6.25%

* If the products you need not listed in this page, please contact us.
